STAHLWERK ARC 270 ST fully equipped welding machine DC MMA | Electric manual inverter welding machine with 270 amps, digital display and IGBT technology

https://img.youtube.com/vi/LMXY21O8gOw/default.jpg

STAHLWERK ARC 270 ST fully equipped welding machine DC MMA | Electric manual inverter welding machine with 270 amps, digital display and IGBT technology

SKU: 1249
GTIN: 4260294082496
Category: ARC MMA welding machines

The STAHLWERK ARC 270 ST welding machine is ideal for DC MMA | MMA welding with an output of 270 amps. The device can be used flexibly as no shielding gas is required. The high-quality welding machine also features the latest generation of state-of-the-art IGBT technology. The set welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu. Integrated overheating protection and high-performance cooling enable the maximum power to be called up continuously. A three-phase alternating current of 400 volts supplies the welding machine and allows an output power of 270 amps.

309,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

You can purchase a maximum of Units 3 of this item.

Device functions & components

MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode to form the weld seam. No shielding gas is required and can therefore be used flexibly at any location.
IGBT technology - The latest and most modern transistor technology enables the highest performance and duty cycle (ED) of 60% at full power! No transformer, no MOSFET, state-of-the-art IGBT!
Lightweight & compact design - only 10.3 kg weight and dimensions of 455 x 220 x 370 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance - Three-phase alternating current (400 V) supplies the device and allows an output power of real 270 amps.
Digital display: The set welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu.
Hot Arc - Adjustable current increase at the start for better ignition results. Prevents the sticking of the rod electrode and heats up the start of the weld seam more quickly by temporarily superimposing the set welding current.
ARC Force - Adjustable spray arc with which the arc width can be infinitely adjusted.

Device features & advantages

VRD - Mode in which the open circuit voltage is reduced to maintain a constant output even at high welding currents.
Anti-stick - Automatic shutdown of the welding current when the electrode sticks, enabling easy removal. It also prevents the electrode from annealing.
Equipped with solid 13 mm professional connection sockets, the device ensures maximum performance.
Smart cooling & overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.
Note: The appliance is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technische Daten

Output current MMA	30-270 A
Protection class	IP21S
Mains voltage	400 V AC (+-15%) / 3 ~ (three-phase)
Mains frequency	50/60 Hz
Maximum mains current (_I1max)	20 A
Maximum effective mains current (_I1eff)	8,9 A
Mandrel size	13 mm
Weight	10.3 kg
Dimensions L x W x H (mm)	455 x 220 x 370
Mains connection	CEE 16 plug
Standards	IEC 60974-1; EN 60974-10 (Class A)

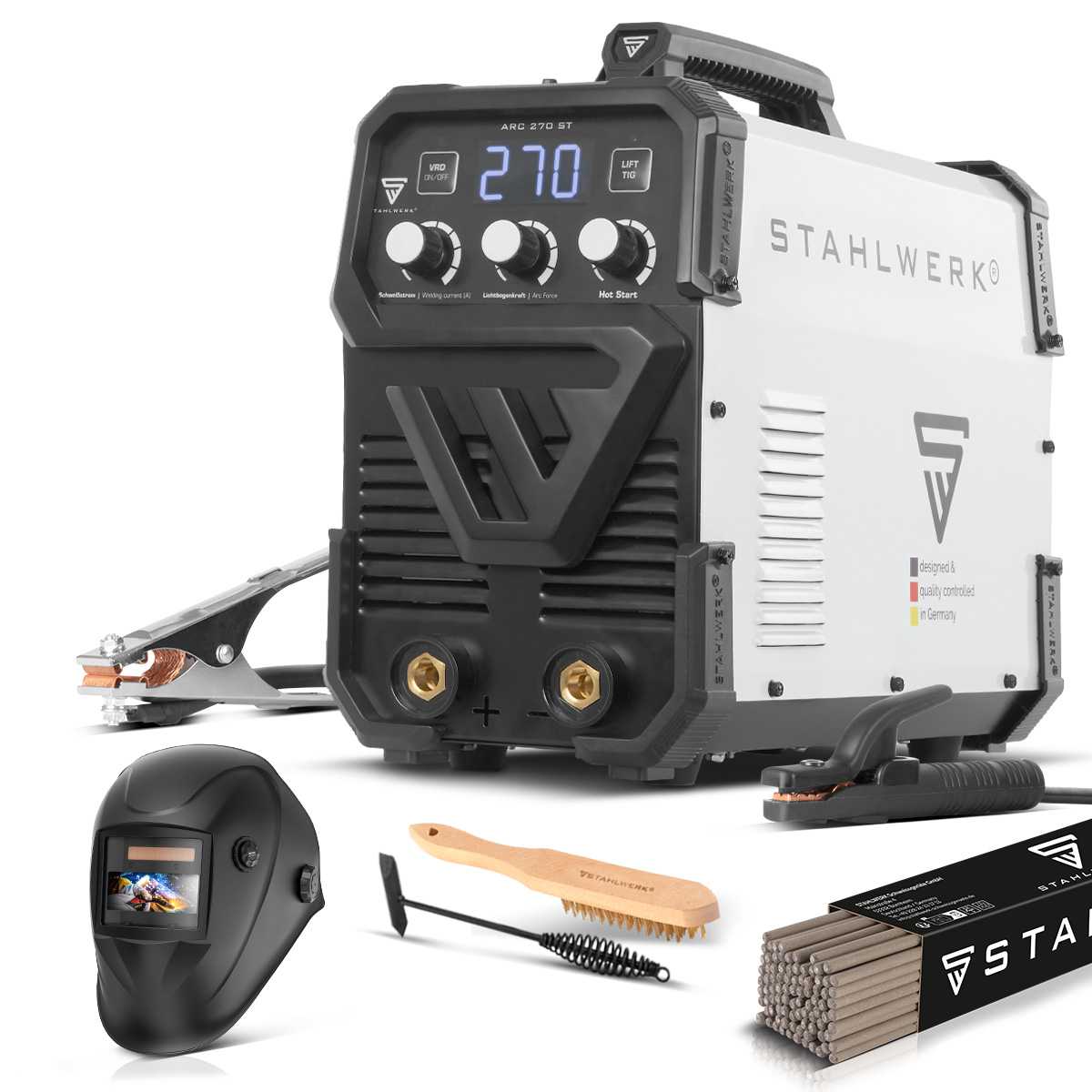

Lieferumfang

1 x The STAHLWERK ARC 270 ST IGBT welding machine
1 x earth cable 3 meters
1 x electrode holder 3 meters
1 x 1 kg stick electrodes (approx. 90 pcs.)
1 x WORKER 3-in-1 automatic welding helmet Welding shield

Robust electrode holder with modern 13 mm connection and 25 mm² cable cross-section. Best conductivity through high quality copper cables. Different angles for stick electrodes possible.

Robust grounding clamp with modern 13 mm connection and 25 mm² cable cross-section. Best conductivity through high quality copper cables.
