B-Ware: STAHLWERK MIG/MAG 200 Puls Pro IGBT-Schweißgerät Vollsynergisches 5 in 1 Kombigerät mit echten 200 Ampere / Fülldraht, MIG MAG, ARC MMA, Lift TIG, MIG Puls für Aluminium Schweißen

https://img.youtube.com/vi/ZR5Pjq9b_tA/default.jpg

https://img.youtube.com/vi/TFMqpM-V00Q/default.jpg

B-Ware: STAHLWERK MIG/MAG 200 Puls Pro IGBT-Schweißgerät Vollsynergisches 5 in 1 Kombigerät mit echten 200 Ampere / Fülldraht, MIG MAG, ARC MMA, Lift TIG, MIG Puls für Aluminium Schweißen

SKU: 1138-bware
GTIN: 4260294081383
Category: Second choice

STAHLWERK MIG/MAG 200 Puls Pro fully synergic 5 in 1 IGBT direct current welding unit. MIG/MAG welding machine for gas-shielded arc welding, various welding parameters can be set. Due to the pulse function only low heat input in the workpiece and the possibility to weld aluminum. The fully synergic welding unit automatically adjusts the voltage and wire feed via the preset welding current. The device also offers a filler wire, MMA and lift TIG function. The welding machine is built using the latest IGBT technology. This enables maximum performance and a high duty cycle (ED)! The device with 4 roller drive can use both 1 kg and 5 kg rollers. By changing the drive rollers, aluminum can also be processed. When the VRD function is switched on, the output voltage of the welding machine is reduced to a safe level to protect the operator from touching the electrode while welding is not in progress.

499,99 €

incl. 19% VAT , plus

Low stock level
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

You can purchase a maximum of Units 3 of this item.

Functions

MIG/MAG - metal arc welding with direct current (DC). Welding can be done with inactive/inert (MIG, e.g. argon) or with active (MAG, e.g._CO2) gases. Gas and welding wire come from one torch head and allow welding to be performed with only one hand.
Various welding parameters can be set. It is suitable for precise welding of thin sheet metal as well as sheet metal and stainless steel. Due to the pulse function, the MIG/MAG-200 Puls Pro is also suitable for aluminum.
Fully synergic device: About the set welding current automatically adjusts the voltage (volts) and also the wire feed always suitable with. Thus, the device is very easy to use, especially for beginners.
5 in 1 combination device - MIG/MAG, flux cored wire, lift TIG, MMA & pulse MIG welding is possible up to 200 A.
IGBT Technology - Latest and most advanced transistor technology enables highest power and high duty cycle (ED)! No transformer, no MOSFET, most modern IGBT!
Lightweight & compact design - only 10.8 kg weight and dimensions of 460 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!

Features & Advantages

Highest Efficiency & Power - Single phase AC (230 V) power supplies the welder and allows output power of true 200 amps.
Smart Cooling & Overheat Protection - State-of-the-art technology, built-in overheat protection, and high-performance cooling allow for maximum power retrieval.
Flux-Cored Wire - All of our units can use flux-cored wire. This allows welding without shielding gas.
Automatic wire feed - the speed of the wire feed is automatically controlled by the set welding current.
Automatic voltage control (volts) - the voltage automatically adjusts to the set welding current.

Wire spool - Commercially available 1 kg and 5 kg wire spools can be processed here. The universal spool mandrel can accommodate both 16 and 50 mm spools.
4 Roll Drive - by simply changing the drive rolls from 0.6 mm & 0.8 mm, different wire gauges can be used. By changing to 1.0 mm & 1.2 mm drive rolls with 'U' profile, aluminum wire can also be used.
MMA electrode welding / MMA welding - is a universal welding process. No shielding gas is required.
Lift TIG - With a separately available (not included) hose package, the unit can also be used to weld DC TIG (strike ignition).
MIG Pulse - the pulse function keeps heat input low and allows welding of aluminum.
VRD (Voltage Reduction Device). Manual on/off of the VRD function allows the output voltage of the welding machine to be lowered to a safe level to protect the operator when touching the electrode while not welding.

Note: The unit is not intended for use in residential areas where power is supplied by a public low-voltage power system. It may be difficult, due to both conducted and radiated interference, to ensure electromagnetic compatibility in these areas.

Technical Data

Output current MIG/MAG (0.6 / 0.8 / 1.0)	20 - 100 A / 40 - 200 A / 50 - 200 A
Pulse MIG (1.0)	20 - 170 A
MMA/LIFT-TIG	20 - 200 A
Protection class	IP21S
Mains voltage	1 x 230 V AC
Mains frequency	50/60 Hz
Maximum mains current (_I1max) MIG / MMA / LIFT-TIG	32 A / 38 A / 25 A
Maximum effective mains current (_I1eff) MIG / MMA / LIFT-TIG	12,4 A / 14,7 A / 9,7 A
Weight	10,8 kg
Dimensions L x W x H (mm)	460 x 210 x 350
Mains connection	CEE 7/7 Schuko plug
Standards	IEC 60974-1; EN 60974-10 (Class A)

Scope of delivery

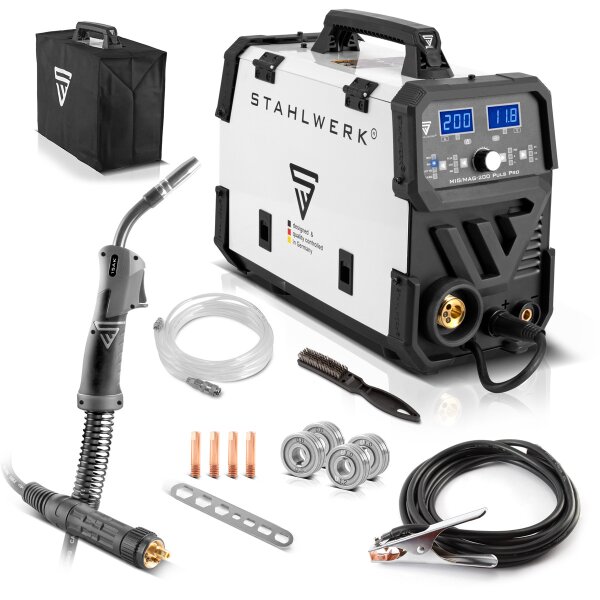

1 x STAHLWERK MIG/MAG 200 Puls Pro IGBT welding machine
1 x Professional MIG welding torch AK-15 / hose package 3 meters
1 x earth cable 3 meters
1 x contact tip M6 x 28 - ø 1.0 mm for aluminum
1 x contact tip M6 x 28 - ø 0.6 mm for steel
1 x contact tip M6 x 28 - ø 0.8 mm for steel
1 x contact tip M6 x 28 - ø 1.0 mm for steel
2 x wire guide roller 0.8 mm & 1.0 mm with 'V' profile (already installed in the device)
1 x STAHLWERK wire guide rollers set of 4 V 0.6/0.8 + U 1.0/1.2
1 x wire brush
1 x Gas connection hose with quick coupling 5 meters
1 x protective cover
