Device functions & components
- Plasma / CUT - A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. This allows effortless precise cutting of all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
- Cut thickness - cut-offs are possible up to 24 mm depending on the material. Mild steel ST37 up to 24 mm, V2A or V4A up to 16 mm, aluminum up to 13 mm.
- Contact ignition - High frequency (HF) contact ignition for first-class ignition performance.
- Cutting current - Stepless adjustment from 20 to 60 A.
- Air after-run - Air automatically flows after the cutting process is complete to cool the torch and reduce nozzle and electrode wear.
Device features & advantages
- IGBT Technology - Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!
- Lightweight & Compact Design - Weighing only 11.1 kg and measuring 460 x 230 x 365 mm, the unit is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
- Highest efficiency & power - Three-phase AC power (400 V) supplies the unit and allows output power of real 60 amps.
- Smart Cooling & Overheat Protection - State-of-the-art technology, built-in overheat protection and high performance cooling allow maximum power to be retrieved.
Technische Daten
Output current | 20-60 A |
Protection class | IP21S |
Mains voltage | 400 V AC (+-15%) / 3 Ph |
Mains frequency | 50/60 Hz |
Maximum mains current (I1max) | 11,4 A |
Maximum effective mains current (I1eff) | 3,6 A |
Weight | 11,1 kg |
Dimensions L x W x H (mm) | 460 x 230 x 365 |
Mains connection | CEE16 plug |
Air pressure | 4 - 6 bar |
Air flow | min. 140 L / min |
IEC 60974-1; EN 60974-10 (Class A) | |
Lieferumfang

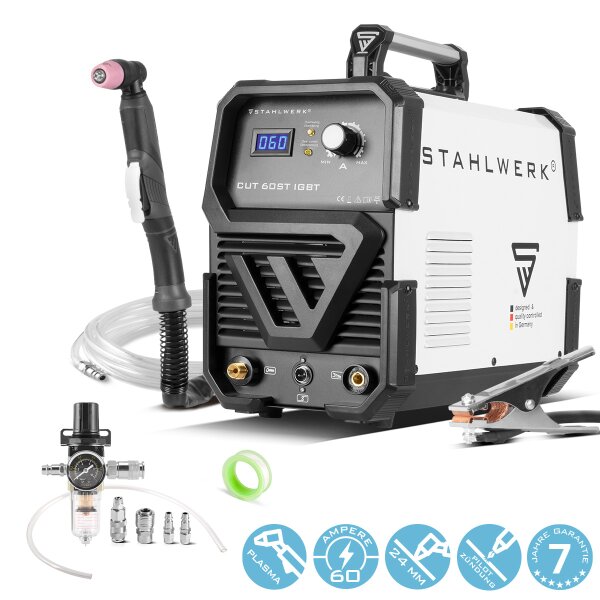

- 1 x Plasma cutter STAHLWERK CUT 60 ST
- 1 x Professional plasma hose package AG-60/SG-55 3 meters
- 1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):
- 1 x plasma nozzle
- 1 x plasma electrode
- 1 x ceramic cap
- 1 x 3 meter ground cable
- 1 x water separator with pressure gauge and snap-on quick-release couplings
- 1 x Connecting hose with snap-on quick couplings from the device to the water separator, incl. 6-piece connection set
- 1 x Air connection hose with Snap-on quick-release coupling 5 m
- 1 x Teflon tape
- 1 x protective cover
High-quality professional AG-60 plasma hose package with integrated button protection. Optimal cutting and ignition behavior up to 70 A. Thicker hose and more robust wear parts than PT-31.
Robust grounding clamp with modern 9 mm connection and a strong cable cross-section. Best conductivity through high quality copper cables.
Quick connection of the air hoses thanks to 3/8" snap-on quick coupling on the device and water separator. One handgrip is enough.
