STAHLWERK MIG MAG 160 M fully equipped welding machine Fully synergic 5 in 1 combination device with genuine 160 ampere and 2 reel drive / cored wire, MIG MAG, ARC MMA, Lift TIG, CuSi soldering

https://img.youtube.com/vi/y6HS7Er7Bas/default.jpg

STAHLWERK MIG MAG 160 M fully equipped welding machine Fully synergic 5 in 1 combination device with genuine 160 ampere and 2 reel drive / cored wire, MIG MAG, ARC MMA, Lift TIG, CuSi soldering

SKU: 1783
GTIN: 4260294087835
Category: MIG MAG Welding Machines

The STAHLWERK MIG/MAG-160 M is a compact, versatile inverter for anyone looking for a lightweight but fully-fledged wire welder with additional functions. Weighing just 6.8 kg and with a welding current range of 20-160 A, the device covers MIG/MAG gas-shielded arc welding, FLUX flux-cored wire welding, MMA/E-Hand and DC-Lift-TIG - all from a standard 230 V socket. The modern IGBT technology ensures a stable arc, high efficiency and robust performance in daily use. In MIG/MAG and FLUX mode, the MIG/MAG-160 M processes wires in the standard diameters of 0.6 / 0.8 / 1.0 mm and 0.9 mm (cored wire). Standard 1 kg wire coils can be processed here. The spool mandrel can accommodate 16 mm spools. The wire speed automatically adjusts to the set welding current, resulting in a uniform penetration with stable arc control. The polarity of the device can be easily reversed for flux-cored wire welding without gas. The device can also be used to solder CuSi3 wire. In addition to wire welding, the device is also capable of classic MMA/e-hand welding with coated stick electrodes. Hotstart facilitates ignition, anti-stick reduces the current in the event of a short circuit so that the electrode does not anneal and can be detached from the workpiece more easily. In combination with an optional WP-17V lift TIG torch, the MIG/MAG-160 M can also be used as a DC TIG device with contact ignition - ideal for finer, cleaner seams on steel and stainless steel. It is operated via a clear front panel with digital display, selection of welding process and wire diameter. Integrated overheating protection with control LED and intelligent smart cooling with powerful fan protect the electronics and enable a practical duty cycle of up to 60 % at 80 A and 100 % at 62 A (at 40 °C ambient temperature). The robust ST-Guard housing makes the device resistant to everyday workshop use and transportation.

279,99 €

incl. 19% VAT , plus shipping costs

Instead of: 299,99 €

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

You can purchase a maximum of Units 3 of this item.

Functions

MIG/MAG gas-shielded arc welding (GMAW): MIG with inert gas (e.g. argon) and MAG with active gas (e.g. CO₂ or mixed gas) for unalloyed and low-alloy steels; wire and gas come out of the torch together, ideal for productive work with just one hand. The device can also be used to solder CuSi3 wire.
FLUX/flux cored arc welding without gas (FCAW): MIG/MAG-like process with special flux cored electrode, in which the flux core provides gas protection - ideal for outdoor work and draughts.
MMA/E-hand welding (ARC): Manual electrode welding with direct current (20-160 A) for robust repair and assembly work, even in hard-to-reach places. Can be used universally indoors and outdoors, even in windy conditions and on construction sites.
DC lift TIG welding (TIG with contact ignition): Lift TIG mode with optional WP-17V torch: ignition by briefly brushing the tungsten electrode, smooth DC arc for clean, controlled seams on steel and stainless steel.
Fully synergic device: The wire feed speed automatically adjusts to the set welding current and voltage. The wire is fed from the reel through the hosepack to the contact tip. The automatic adjustment of the welding current reduces operating errors and produces uniform seams.
Hotstart and anti-stick: Hotstart briefly increases the voltage for better ignition, anti-stick reduces the current in the event of a short circuit so that the electrode does not burn out and can be easily detached.
Electronic safety control: Modern IGBT inverter technology, overheating protection with control LED, smart cooling via powerful fan and ergonomic ST-Guard housing with easily accessible control panel ensure safe and efficient work.

Functions

Versatile 5-in-1 professional for workshop and assembly: One device for MIG/MAG, FLUX, MMA and Lift-TIG - ideal when space is limited in the workshop or service vehicle, but different processes are required.
High mobility, low weight: With only approx. 6.8 kg and compact dimensions of 400 × 155 × 290 mm, the device is easy to transport and can be used flexibly at different work locations.
Optimum duty cycle: 15 % duty cycle at 160 A, 60 % at 80 A and 100 % at 62 A (MIG/MAG/TIG/MMA, 40 °C) enable both short, high-performance seams in the upper current range and longer welding jobs in the medium power range.
Clean results with shielding gas or cored wire: MIG/MAG with shielding gas delivers smooth, low-spatter seams, while FLUX cored wire does not require an external gas cylinder - particularly practical for outdoor and mobile applications.
Robust ST-Guard housing and smart cooling: The ergonomic housing protects the electronics, while ventilation openings and fans ensure effective cooling and enable the maximum duty cycle to be utilized.
Easy handling thanks to digital display: Clearly structured front with process and wire gauge selection, digital current/voltage display and switching function make it easy to quickly adjust the parameters. Settings can be made quickly, which saves time, especially when frequently switching between processes (e.g. MIG and MMA).

Wire spool - Standard 1-kg wire spools can be used here. The spool mandrel can accommodate 16-mm spools.
Wire feed roller—by simply changing the feed roller, different wire diameters can be used (0.6 mm / 0.8 mm / 1.0 mm).
MMA Electrode Welding / MMA Welding – is a universal welding process. No shielding gas is required.
Lift TIG—With a separately available (not included) hose kit, the unit can also be used for DC TIG welding (strike-on-load).

Note: The unit is not intended for use in residential areas where power is supplied via a public low-voltage power grid. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical Data

Model	MIG MAG-160 M
Processes	MIG/MAG, FLUX (cored wire), MMA/E-hand, DC-Lift-TIG
Output current MIG/MAG \| TIG \| MMA	20 - 160 A
Duty cycle (40 °C) MIG/MAG \| TIG \| MMA	15 % at 160 A / 60 % at 80 A / 100 % at 62 A
Open circuit voltage	62 V
Mains voltage	1 x 230 V AC (+- 15%)
Mains frequency	50/60 Hz
Maximum mains current (_I1max) MIG/MAG \| TIG \| MMA	26 A \| 18.8 A \| 30 A
Maximum effective mains current (_I1eff) MIG/MAG \| TIG \| MMA	10.1 A \| 7.3 A \| 11.6 A
Protection class	IP21S
Weight	6.8 kg
Dimensions L x W x H (mm)	400 x 155 x 290
Mains connection	CEE 7/7 Schuko plug
Standards	IEC 60974-1; EN 60974-10 (Class A), certified by SGS Standards Technical Services Co., Ltd.

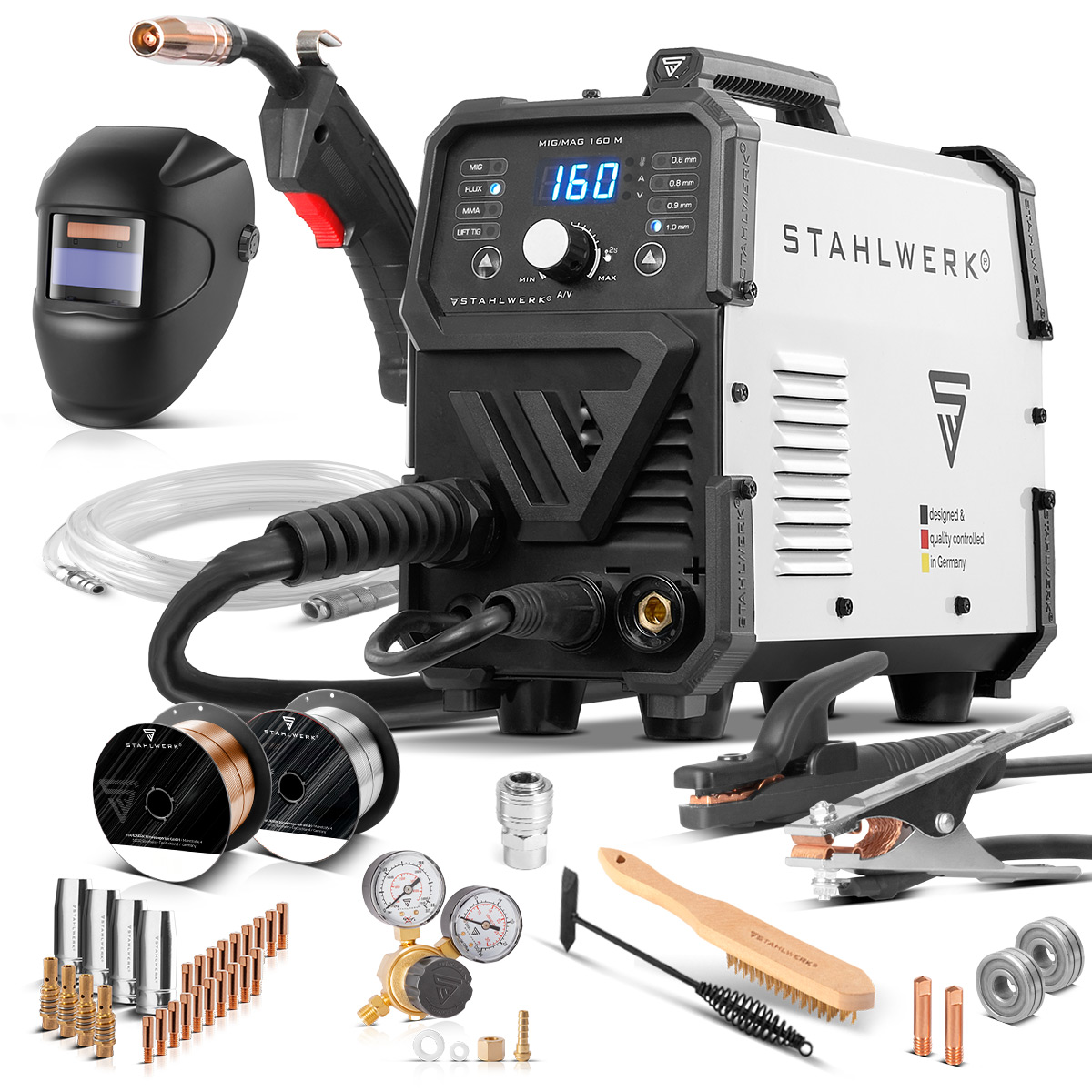

Scope of delivery

1 x STAHLWERK MIG 160 M IGBT Welding Machine
1 x Professional MIG welding torch AK-14 / 2-meter hose set. This is permanently attached to the machine
1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch):
- 1 x gas nozzle
- 1 x 0.8 mm electrode tip
- 1 x gas nozzle holder
1 x wire nozzle M6 x 28 - ø 0.8 mm
1 x current nozzle M6 x 28 - ø 1.0 mm
1 x ER70S-6 MIG/MAG welding wire, 0.8 mm diameter
1 x FLUX flux-cored wire E71T-GS, 0.9 mm diameter
1 x ground cable, 3 meters
1 x electrode holder, 3 meters
1 x wire brush
1 x slag hammer
1 x pressure regulator
1 x quick-connect coupling for pressure regulator
1 x gas connection hose with quick-connect coupling, 5 meters
1 x wire feed roller (0.6 mm & 0.8 mm, 0.8 mm & 0.9 mm; 0.8 mm & 1.0 mm is already installed in the machine)
1 x Protective cover
1 x MIG MAG 15AK 28-piece wear parts set
1 x Professional welding helmet

AK-15 MIG / MAG hose package which is permanently installed on the welding machine. Optimal welding and ignition behavior up to 200 A. A 3-part set of wear parts for immediate start is included in delivery.

Robust electrode holder with modern 9 mm connection and 25 mm² cable cross-section. Best conductivity through high quality copper cables. Different angles for stick electrodes possible.

Robust grounding clamp with modern 9 mm connection and 25 mm² cable cross-section. Best conductivity through high quality copper cables.
