STAHLWERK 3-in-1 automatic welding helmet MASTER AIR | Welding helmet with fresh air supply | Bluetooth remote control | True color reproduction | Darkening DIN 4 to DIN 14 | Optical class 1/1/1/1

NEU

Virtual all-around view

Experience our product from every angle – in an impressive 360° view.

Start 360° view

STAHLWERK 3-in-1 automatic welding helmet MASTER AIR | Welding helmet with fresh air supply | Bluetooth remote control | True color reproduction | Darkening DIN 4 to DIN 14 | Optical class 1/1/1/1

SKU: 6796
GTIN: 4262452497968
HAN: 6796
Category: Welding helmets

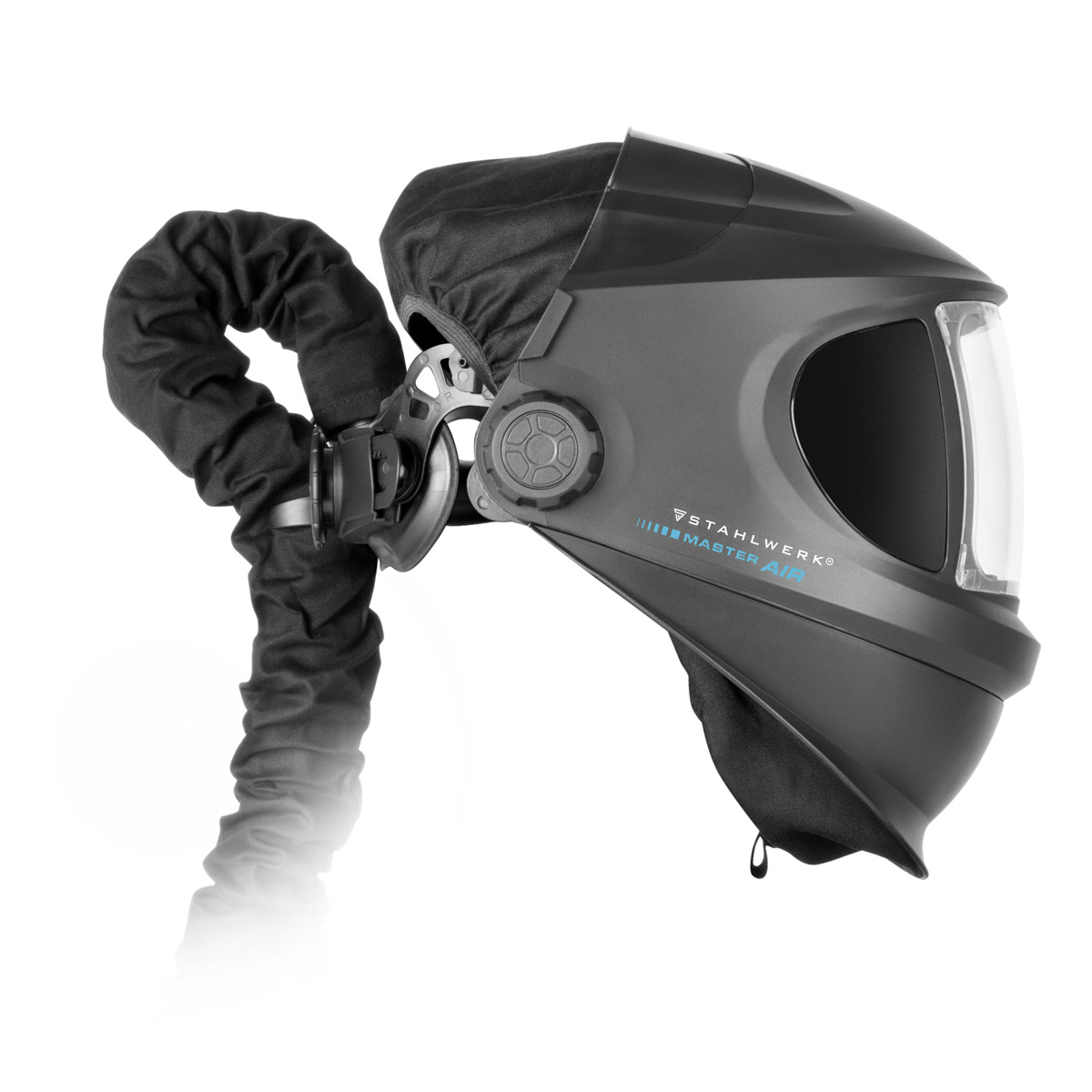

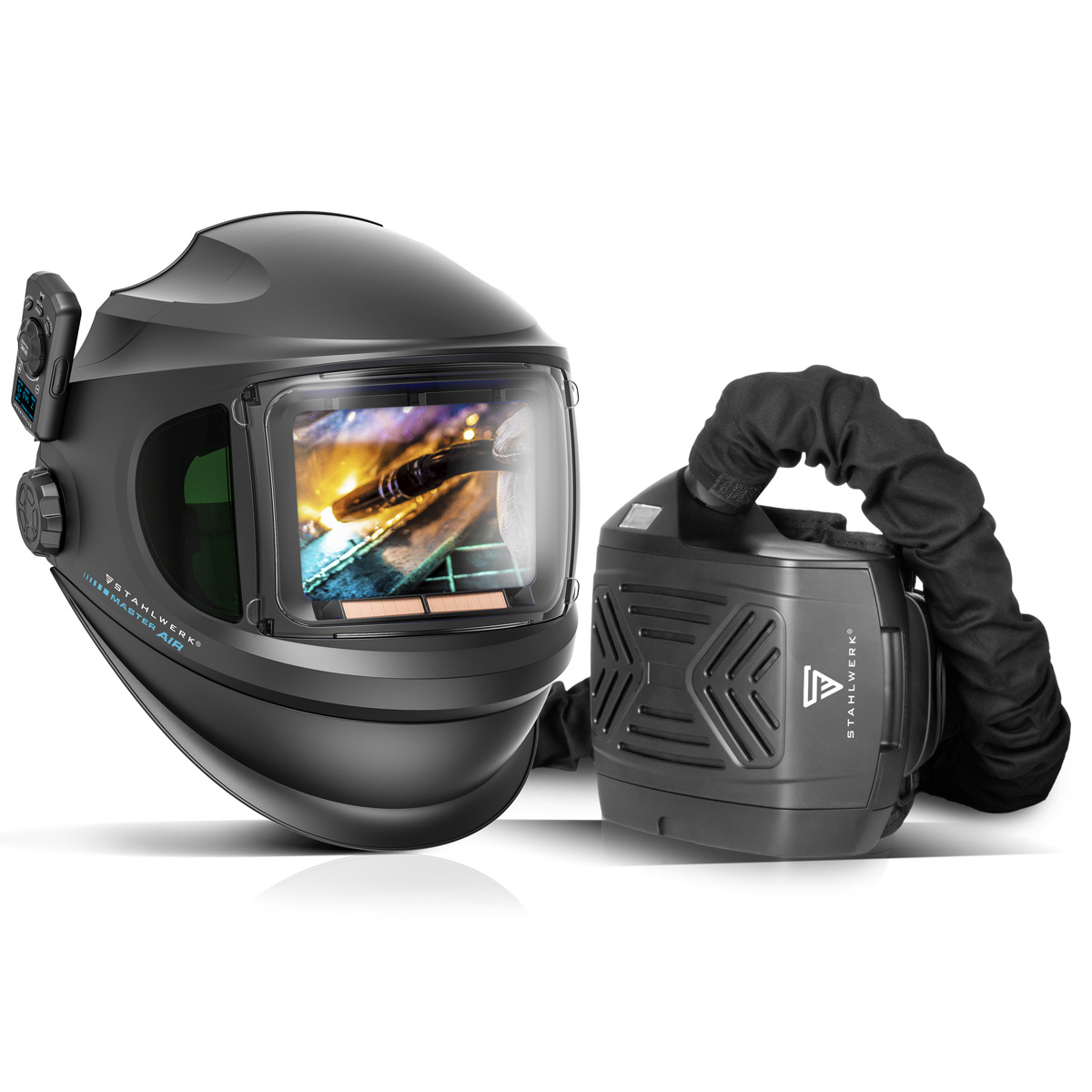

The STAHLWERK MASTER AIR automatic welding helmet is a first-class welding helmet with an integrated respiratory protection system and a P3 particle filter in accordance with filter protection class TH3 P R SL. The PAPR system in combination with the 3-in-1 safety helmet ensures maximum safety and comfort when welding. Intelligent air filtration with integrated control module ensures a stable and consistent air supply in three stages: 170L/min,200L/min,230L/min. The fresh air unit's 14.8-volt Li-ion battery can be conveniently charged using the mains adapter supplied. It is not necessary to change the battery. The operating time is up to ten hours, depending on the air flow rate. Thanks to the visor seal, neck protection, face cuff and flame-resistant chin guard, the helmet remains tight, safe and comfortable to wear. The automatic welding helmet with optical class 1/1/1/1 is suitable for professional welding, plasma cutting, grinding and cutting. It offers reliable protection for the eyes and face against flashes, heat, sparks and particles. The true color filter cassette ensures optimum, sharp vision and excellent true color reproduction. Four independent sensors ensure automatic dimming and adjustment as soon as the arc ignites. Thanks to the ambient light sensor, the dark levels are adapted to the arc brightness. With the convenient Bluetooth remote control, numerous parameters (WELD / CUT / GRIND / DARK MODE) can be easily selected without having to take off the welding helmet. The darkening levels can be set from DIN 4 to DIN 14 depending on the mode and can be finely adjusted using the SHADE function. A job memory saves the set parameters. A special TACK mode is integrated for short welding cycles. In addition, light sensitivity and delay can be individually adjusted via the monochrome LCD filter cassette. Locking protection prevents unintentional adjustment in forced positions. The ergonomic premium headband offers high wearing comfort, even during long work cycles. The combination of automatic field of vision darkening, color fastness and intelligent air filtration enables safe, controlled work and makes this welding helmet system the ideal choice for professional welders and demanding craftsmen.

449,99 €

incl. 19% VAT , plus

Instead of: 519,99 €

(Save 13.46%, i.e. 70,00 €)

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

You can purchase a maximum of Units 3 of this item.

Manufacturer information

STAHLWERK Schweissgeräte Deutschland GmbH was founded in 1998 and offers original welding equipment as a manufacturer. We are your professional and reliable welding equipment supplier. Product safety carries the registered trademark STAHLWERK. The company responsible for product safety is STAHLWERK Schweissgeräte GmbH
located in Bornheim
Mainstraße 4
53332
Germany. For questions regarding product safety
please contact us at the electronic address info@stahlwerk-schweissgeraete.de or by phone at +49 228 24331713. The person responsible for product safety is Alexander Hamann.

To go with this article we recommend

STAHLWERK 2 × Magnet Welding Angle Magnet Welding Magnet 45° x 90° x 135°, 22,6 kg / 50 lbs

12,99 € *

STAHLWERK 2 x set of 4 magnetic welding brackets 4 kg | 9 lbs practical welding magnet | magnetic bracket | welding positioner with strong adhesive force

19,99 € *

STAHLWERK 2 x welding gloves | heat protection gloves | work gloves | heat-resistant gloves made of high-quality split leather for welding and plasma cutting

25,99 € *

STAHLWERK 4 × magnetic welding bracket magnetic bracket welding magnet 45° x 90° x 135°, 34 kg / 75 lbs

21,99 € *

STAHLWERK 4 x magnetic welding angle 45° x 90° x 135°, 22.6 kg / 50 lbs set of 4

20,99 € *

STAHLWERK set of 4 magnetic welding angle 11,3 kg | 25 lbs practical welding magnet | magnetic angle | welding positioner with strong holding force

20,99 € *

STAHLWERK Set of 4 Magnetic Welding Angle 4 kg | 9 lbs Practical Welding Magnet | Magnetic Angle | Welding Positioner with Strong Holding Force

11,99 € *

STAHLWERK 6 × magnet welding angle magnet welding angle 30° x 45° x 60° x 75° x 90° x 135°, 2 x 4 kg / 9 lbs + 4 x 11,3 kg / 25 lbs

16,99 € *

STAHLWERK set of 8 magnetic welding brackets 11.3 kg | 25 lbs practical welding magnet | magnetic bracket | welding positioner with strong adhesive force

20,99 € *

STAHLWERK AC/DC TIG 200 ST IGBT Combination Welder with 200 Amp TIG MMA, Aluminum Welding

399,99 € *

STAHLWERK Automatic welding helmet BOOSTER 3-in-1 welding helmet | welding mask with true color true color reproduction, job memory, automatic darkening DIN 4 to DIN 13 and optical class 1/1/1/2

54,99 € *

19,99 € *

STAHLWERK automatic welding helmet WORKER 3-in-1 welding helmet | welding shield | welding mask with true color true color reproduction, automatic darkening DIN 4 to DIN 13 and optical class 1/1/1/2

29,99 € *

STAHLWERK DC TIG 200 ST IGBT - Combination TIG welder with 200 amps and MMA E-Hand, welding steel, stainless steel and more. (no ALU welding)

229,99 € *

STAHLWERK Hexagon welding magnet | Powerful magnet for versatile applications with 50 kg holding force

10,99 € *

STAHLWERK magnetic welding angle magnetic angle welding magnet with adjustable angles 20° - 200° 22 kg / 48 lbs

28,99 € *

STAHLWERK Magnet welding angle Magnet welding angle switchable 45° - 165° 30 kg / 66 lbs

31,99 € *

STAHLWERK grinding helmet face protection with face visor and protective mask for grinding very light with large XL visor, comfortable to wear thanks to comfortable premium headband

30,99 € *

Old price: ~~41,99 €~~

STAHLWERK protective clothing set consisting of welding apron and welding gloves made of heat-resistant and hard-wearing genuine leather, high thermal and mechanical strength

49,99 € *

STAHLWERK welder gloves leather gloves work gloves made of heat-resistant and durable genuine leather, high thermal and mechanical load capacity, high quality workmanship

17,99 € *

STAHLWERK welder arm protectors splash guards arm sleeves welder sleeves made of heat resistant and durable genuine leather, high quality workmanship

24,99 € *

STAHLWERK welding sleeves | welding gauntlets | welding sleeves | welding arm protection | welding protective clothing with elastic waistband made of high-quality split leather

19,99 € *

STAHLWERK welding sleeves | welding gauntlets | welding sleeves | welding arm protection | welding protective clothing with carrying straps made of high-quality split leather

38,99 € *

STAHLWERK Welding gloves | heat protection gloves | work gloves | heat-resistant gloves made of high-quality split leather for welding and plasma cutting

16,99 € *

39,99 € *

STAHLWERK welding apron leather apron made of robust genuine leather, heat and fire resistant, suitable for TIG TIG MIG MAG MMA Plasma uvm

38,99 € *

STAHLWERK welding gloves extra robust heat protection gloves | work gloves | welding gloves | heat-resistant gloves made of high-quality split leather for welding plasma cutting

17,99 € *

STAHLWERK ARC 200 MD Digital welding machine - DC MMA | E-Hand | Lift-TIG inverter with 200 amps, digital display, IGBT technology and single board

119,99 € *

Old price: ~~129,99 €~~

STAHLWERK Welding machine MIG MAG 200 ST Digital IGBT gas-shielded welding machine | Inverter with 200 A, spot function, synergic wire feed, FLUX and MMA | ARC function

399,99 € *

STAHLWERK welding machine Mini FLUX 120 ST Digital with 120 A full equipment, synergic wire feed, Lift-TIG and ARC/MMA function for welding without shielding gas

164,99 € *

19,99 € *

STAHLWERK Welding cap | welding helmet | welding hood | welding mask | flame-retardant protective clothing for welding and plasma cutting

16,99 € *

STAHLWERK welding protection curtain 240 x 180 cm | Welding curtain made of UV-resistant vinyl plastic | Extra dark | DIN EN ISO 25980 | Effective protection during welding, cutting and grinding work

39,99 € *

STAHLWERK fully automatic welding helmet ST-450 RC carbon optics fully automatic dimming, adjustable parameters, incl. 5 spare lenses

34,99 € *

STAHLWERK 2 x face shield offers optimum protection when sanding metal, wood or plastic. The protective visor is generously dimensioned and provides a good overview

24,99 € *

STAHLWERK AC/DC TIG 200 pulse with plasma ST welder with 200 A TIG & MMA, aluminum & thin sheet suitable, combination unit with 50 amp CUT function

549,99 € *

STAHLWERK Automatic welding helmet BULLET 3-in-1 welding helmet | welding shield | welding mask with true color true color reproduction, automatic darkening DIN 4 to DIN 13 and optical class 1/1/1/2

44,99 € *

STAHLWERK automatic welding helmet RAPTOR 3-in-1 welding mask with LED light, true color true color rendering, job memory, automatic darkening DIN 4 to DIN 13 and optical class 1/1/1/2

87,99 € *

STAHLWERK SPLIT 3-in-1 automatic welding helmet with 180° field of vision, LCD color display, true-color true-color reproduction, job memory, automatic dimming DIN 4 to DIN 14 and optical class

119,99 € *

STAHLWERK Automatic welding helmet TITAN 3-in-1 welding helmet | welding mask with true color true color reproduction, job memory, automatic darkening DIN 4 to DIN 14 and optical class 1/1/1/1

79,99 € *

STAHLWERK CUT 50 Pilot IGBT plasma cutter with pilot ignition and 50 amps, up to 14 mm cutting power, suitable for painted sheets & flash rust

299,99 € *

STAHLWERK fire blanket 200 x 200 cm fiberglass DIN EN 1869:2019 Fire blanket | fire protection blanket | fire extinguishing blanket | fire blanket | welding blanket

29,99 € *

STAHLWERK welding set | 300 g slag hammer, vibration-inhibiting with pointed and flat chisel | 4-row stainless steel wire brush | 2 kg pack of rutile-coated stick electrodes AWS E6013RR, thick, 2.5 x 350 mm

19,99 € *

STAHLWERK welder's sleeves | welder's gauntlets | welder's arm protection | welder's protective clothing with Velcro fastener made of high-quality split leather for welding and plasma cutting

21,99 € *

STAHLWERK Welding protective clothing set with welding apron, welding sleeves and welding gloves PPE for welding and plasma cutting

66,99 € *

STAHLWERK Welding protection curtain welding protection curtain 2,4m x 1,8m, UV resistant partition wall made of high quality vinyl plastic, mobile steel frame with rollers

94,99 € *

STAHLWERK dual switching magnet | Flexible 90 degree welding magnet with individually controllable magnetic force | Adaptable to all workpieces for precise work

23,99 € *

Others also bought:

STAHLWERK P3 particle filter cassette for blower unit | Filter system for fresh air welding helmets | Filter accessories for MASTER AIR and BOOSTER AIR welding helmets | PAPR system

19,99 € *

STAHLWERK pre-filter for blower unit set of 5 | filter system for fresh air welding helmets | filter accessories for MASTER AIR and BOOSTER AIR welding helmets | PAPR system

14,99 € *

STAHLWERK spark arrester for blower unit set of 2 | filter system for fresh air welding helmets | filter accessories for MASTER AIR and BOOSTER AIR welding helmets | PAPR system

14,99 € *

19,99 € *

STAHLWERK Welding cap | welding helmet | welding hood | welding mask | flame-retardant protective clothing for welding and plasma cutting

16,99 € *

STAHLWERK welding sleeves | welding gauntlets | welding sleeves | welding arm protection | welding protective clothing with carrying straps made of high-quality split leather

38,99 € *

STAHLWERK magnetic welding angle magnetic angle welding magnet with adjustable angles 20° - 200° 22 kg / 48 lbs

28,99 € *

STAHLWERK welding gloves protective gloves work gloves robust genuine leather heat and fire resistant, white yellow, suitable for TIG TIG MIG MAG MMA plasma

18,99 € *

Our Performance Promise

Developed in Germany – Made for the Future!

Best Service for Customers Even After the Warranty Expires

About Us

Company

Fraunhofer Technology Day

Career

STAHLWERK TV

Sponsoring Partnerships

Social Responsibility

Service

Branches & Authorized Service Partners

Test On-Site

TÜV Rheinland Training & Welding Schools

Leasing

Resellers & Partners

Contact

STAHLWERK 3-in-1 automatic welding helmet MASTER AIR | Welding helmet with fresh air supply | Bluetooth remote control | True color reproduction | Darkening DIN 4 to DIN 14 | Optical class 1/1/1/1

Functions

Features & benefits

Technical Data

Artikel

Model:	STAHLWERK welding helmet MASTER
Visibility:	116 x 81 mm
Modes:	Welding / Plasma cutting / Grinding
Internal control in grinding mode:	Yes
External simple control in loop mode:	Yes
External dimming level setting (SHADE):	Yes
Operation display:	OLED
Optical class:	1/1/1/1
Independent arc sensors:	4
Switching time:	0.04ms
Permanent UV/IR protection:	Yes
True View technology:	Yes
Light status:	W3
Dimming levels:	W4-8/7<14
Dark mode:	Yes
TIG rating:	Advanced
Light sensitivity:	Yes
Delay time setting:	0.04-2.0s
Soft tone transition function (TRS):	Yes
Tack welding function:	Yes
Memory function:	Yes
Self-test function:	Yes
Replaceable battery:	2 x CR2450
Low battery indicator:	Yes
Operating temperature:	-10C° - +55°C
Weight:	752 g
Bluetooth remote control:	37 g

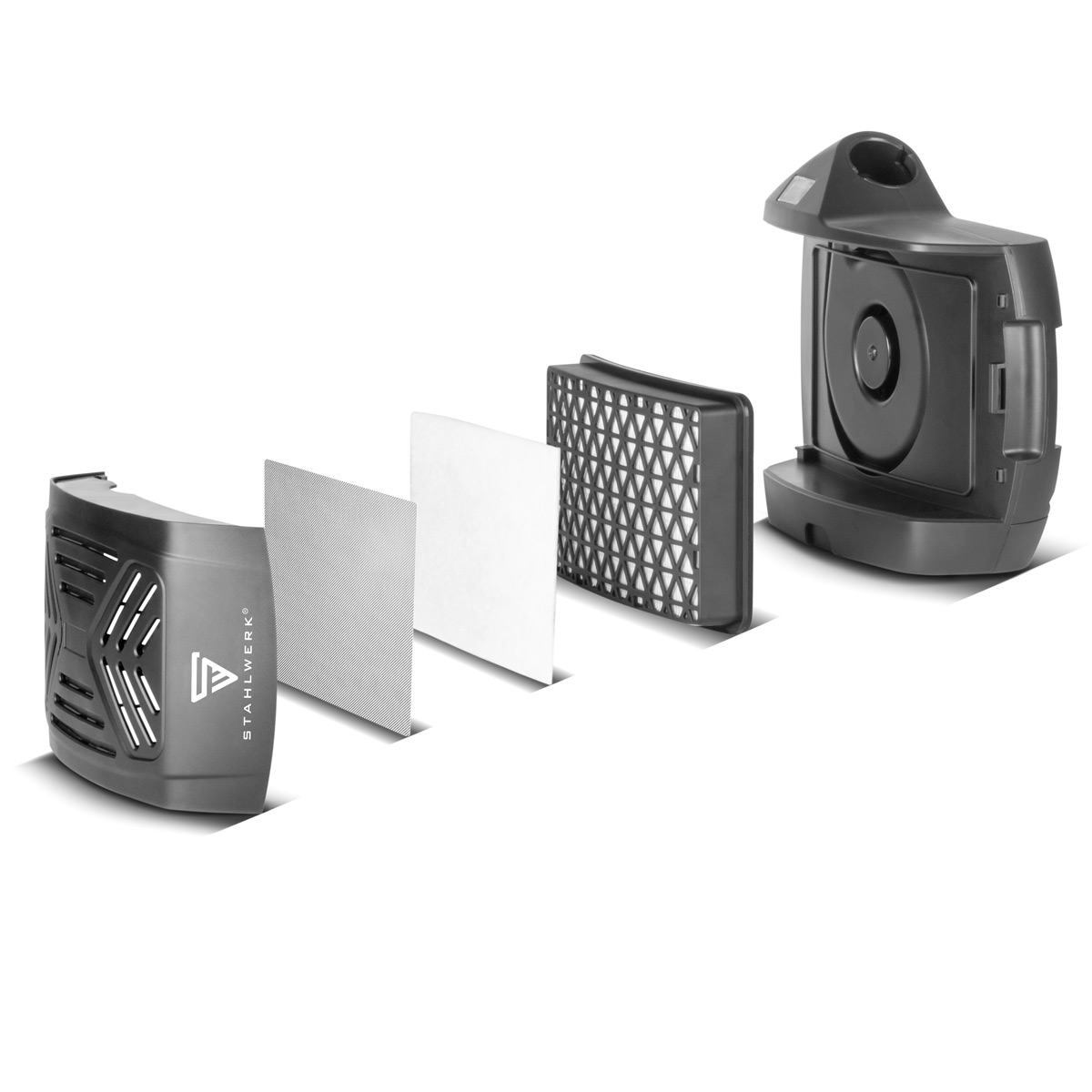

Model:	STAHLWERK fresh air and blower unit
Filter class:	TH3 P R SL
Filter type:	Particle filter (P§)
Filter efficiency:	>99,99 %
Air flow rate:	170 l/min, 200 l/min, 230 l/min
Warning signals:	Audible, visual and vibrating
Noise level:	73 dB max.
Operating time (min/max):	170 l/min: >10 hours, 230 l/min: >6 hours
Power supply:	Li-ion battery 14.8 V/2.6 Ah/38.48 Wh
Charge cycles:	>500
Charging time:	2 hours
Dimensions:	201 x 183 x 80 mm (L x H x W)
Weight:	1050 g (incl. filter and battery)
