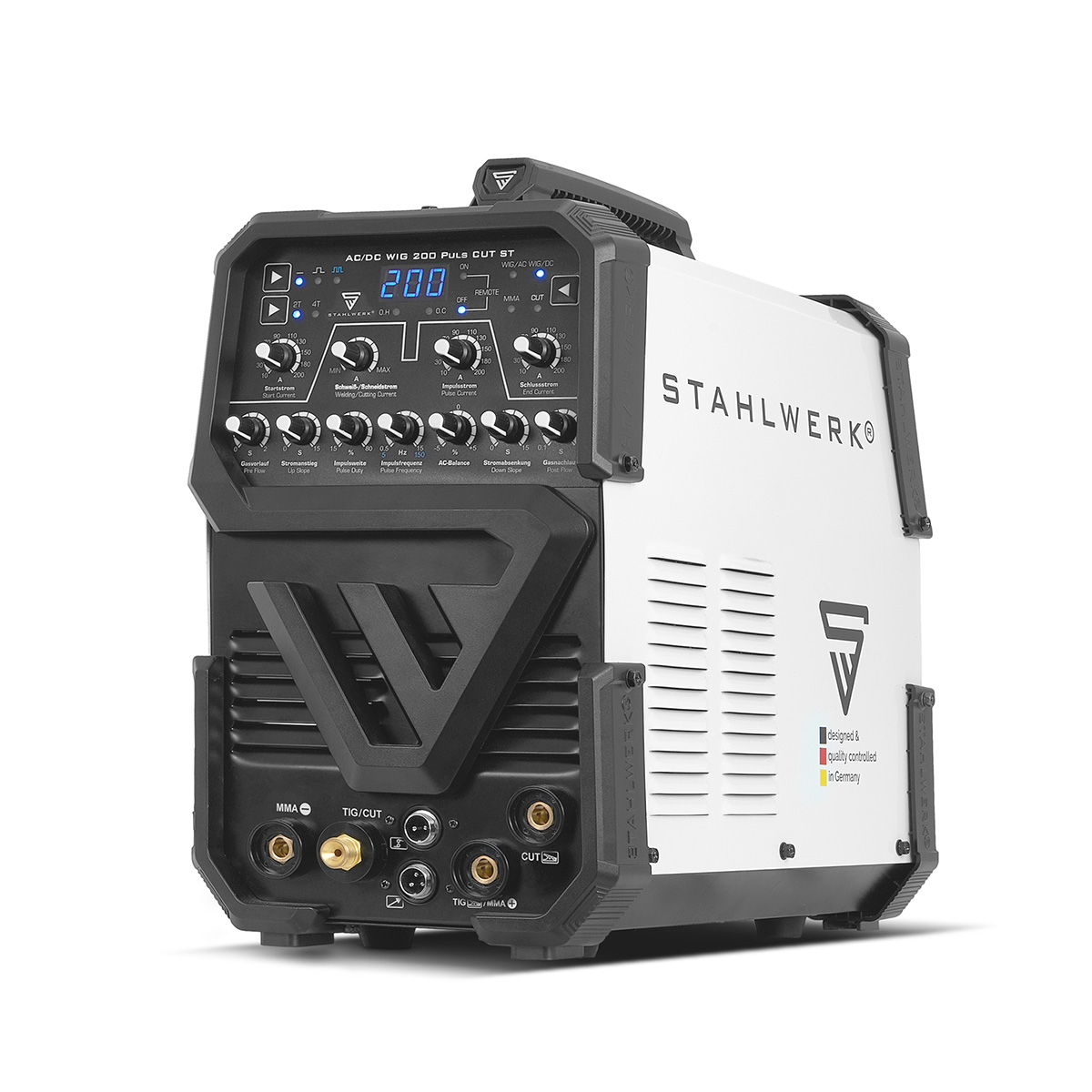

Device functions & components
- AC/DC TIG welding - alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminum, copper and more.
- 3 in 1 combination unit - TIG & MMA welding is possible up to 200 A, plasma cutting up to 50 A.
- Plasma / CUT - By means of current a plasma jet is generated, which melts the material, which is then removed with compressed air. This allows effortless precise cutting of all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
- Cut thickness - cut-offs are possible up to 12 mm depending on the material. Mild steel ST37 up to 12 mm, V2A or V4A up to 8 mm, aluminum up to 5 mm.
- Extensive pulse function - TIG PULS - prevents burning through materials and reduces deformation due to heat, especially suitable for welding thin plates whose material may be heated only slightly. Adjustable parameters are: Pulse current, pulse width, pulse frequency, long and short pulse.
- IGBT technology - The latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!
- Lightweight & compact design - only 13 kg weight and dimensions of 455 x 220 x 370 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
- HF ignition - enables non-contact ignition and provides much better welding results. No LIFT ARC, no strike ignition!
- Highest Efficiency & Power - Single phase AC power (230V) powers the unit and allows output power of true 200 amps.
- Smart Cooling & Overheat Protection - State-of-the-art technology, built-in overheat protection and high performance cooling allow maximum power to be retrieved.

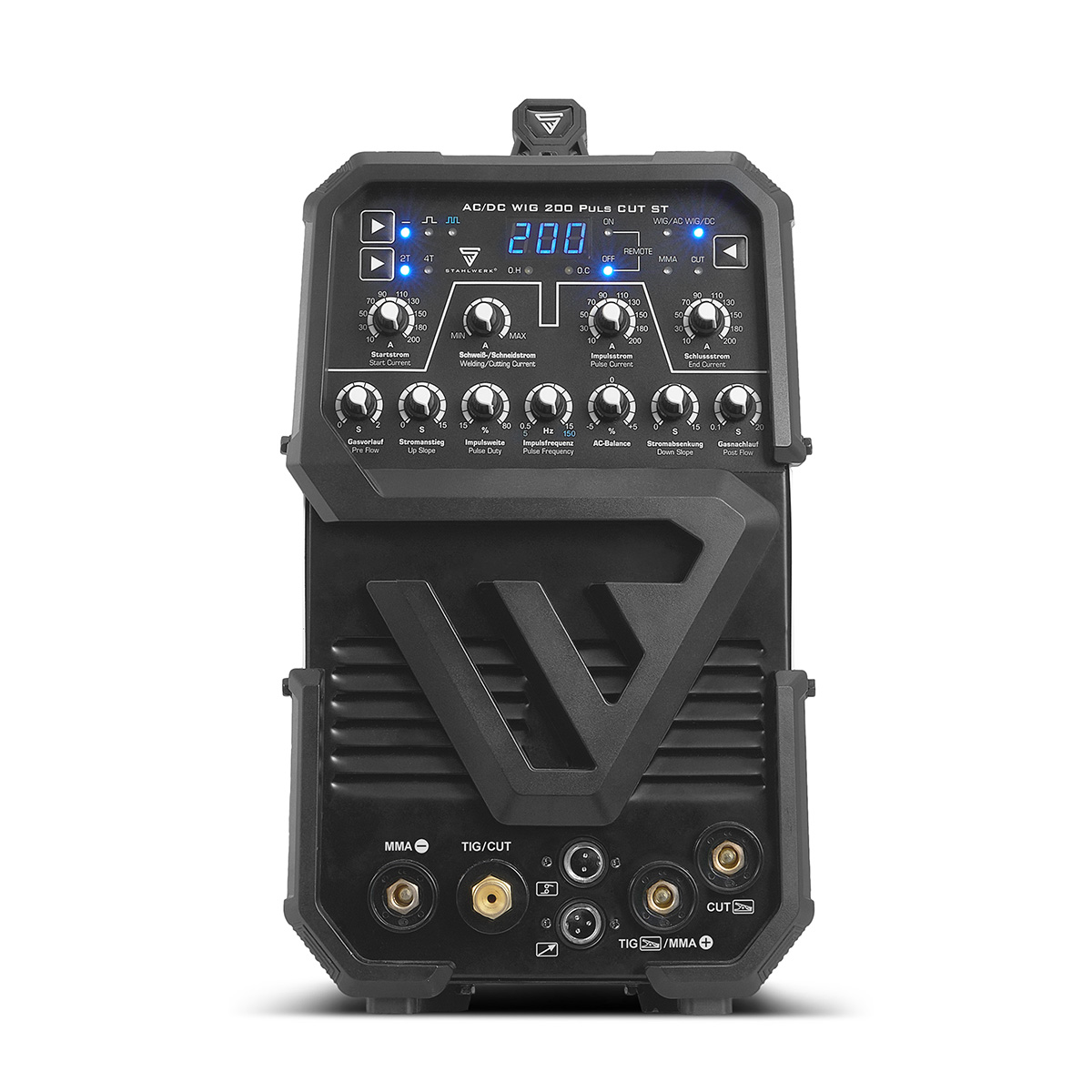

Device features & advantages
- 2T/4T (TIG) determines mode control and provides advanced control & over current flow. In 2T mode, high frequency (HF) ignition remains active until the torch button is released. In 4T mode, the arc is ignited after pressing and releasing the button once. After pressing and releasing the key again, the ignition is terminated. Some functions, such as current reduction, are only possible in 4T mode.
- Increase/decrease of current - prevents the formation of indentations (end craters) at the end of welding.
- Contact Ignition (CUT) - High frequency (HF) contact ignition for first class ignition performance. One pass through the workpiece is sufficient.
- Cutting current (CUT) - Continuously adjustable from 15 to 50 A.
- Air tracking (CUT) - At the end of the cutting process, air automatically flows in to cool the torch and reduce nozzle and electrode wear.
- Gas pre-run and post-run (TIG) - protect the tungsten electrode from excessive wear and protect the weld seam from oxidation. The parameters can be set individually and separately. They specify how long gas should flow before and after ignition.
- AC balance - is a variable setting between breaking up the oxide layer (-) and deeper penetration (+). This helps to act on properties of different materials and alloys.
- Remote adjustment via torch or pedal. The welding current can be conveniently adjusted at any time using the rotary control mounted on the torch. Alternatively, the welding current can also be regulated with our optionally available foot pedal.
- Welding current / pulse current - The two buttons "Welding current" and "Pulse current" allow you to set two different current levels for a welding process, between which the welding current then always alternates.
- Pulse width - The pulse width is used to set how long the welding current assumes the current strength of the pulse current before it swings back to the normal welding current strength.
- Pulse Frequency - The pulse frequency sets how often the current intensity alternates between the two set values in a specified time interval.
- Longpulse - The weld becomes wider, the heat input is higher and the penetration is deeper.
- Shortpuls - The weld pool is easier to control and there is less risk of welding a hole in the plate.
- Foot pedal - Remote current control via foot pedal(not included). The foot control mode gives you the advantage of being able to control the current even during the welding process, giving you different options for performing the welding work. No pulse function possible in pedal mode. The maximum current is set on the device. The foot pedal is set to 10. When the foot pedal is pressed, the unit ignites with a lower current than is shown on the display. As soon as the foot pedal is fully depressed, the set maximum current is reached. The value on the display does not change during this time. Examples: Maximum current display: 100 A / ignition current by pedal: approx. 40 A, Maximum current display: 150 A / ignition current by pedal: approx. 80A, Maximum current display: 200 A / ignition current by pedal: approx. 110 A
- Hotstart - Automatic voltage increase at start for better ignition results.
- Anti-Stick - Automatic decrease of welding current when electrode sticks, allowing easy removal.
- TIG (Tungsten Inert Gas) - Gas shielded arc welding with inert/inactive gases such as Argon 4.6 (99.996 %). An arc is created between the tungsten electrode and the workpiece in an argon bell. This melts the material and any filler material added. A weld seam is produced.
- MMA electrode welding / ARC welding - a universal welding process. An arc melts the electrode, forming the weld seam. No shielding gas is required.
Note: The unit is not intended for use in residential areas where power is supplied by a public low-voltage power system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.
Technische Daten

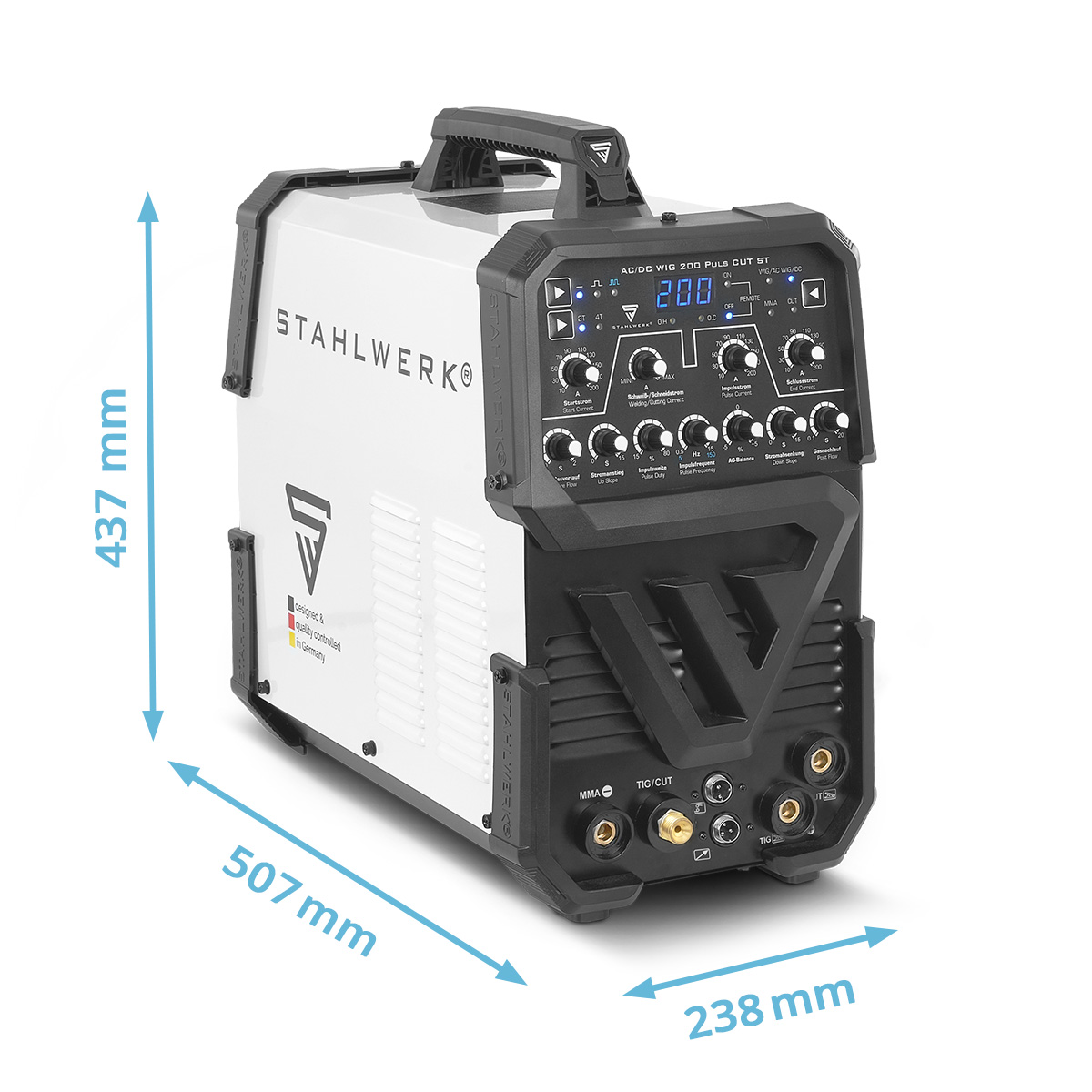

Output current TIG / MMA | 10-200 A |
Output current CUT | 20-50 A |
Protection class | IP21S |
Insulation class | F |
Mains voltage | 230 V AC (+-15%) / 1 ~ (single-phase) |
Mains frequency | 50/60 Hz |
Maximum mains current (I1max) (WIG / MMA / CUT) | 31.3 A / 32.0 A / 34.4 A |
Maximum effective mains current (I1eff) (WIG / MMA / CUT) | 16.5 A / 14.3 A / 15.2 A |
Weight | 13 kg |
Dimensions L x W x H (mm) | 455 x 220 x 370 |
Mains connection | SchuKo type CEE 7/7 |
Air pressure plasma cutter | 3,5 - 4 bar |
Air flow plasma cutter | min. 100 L/min |
Standards | IEC 60974-1; EN 60974-10 (Class A) |
Lieferumfang

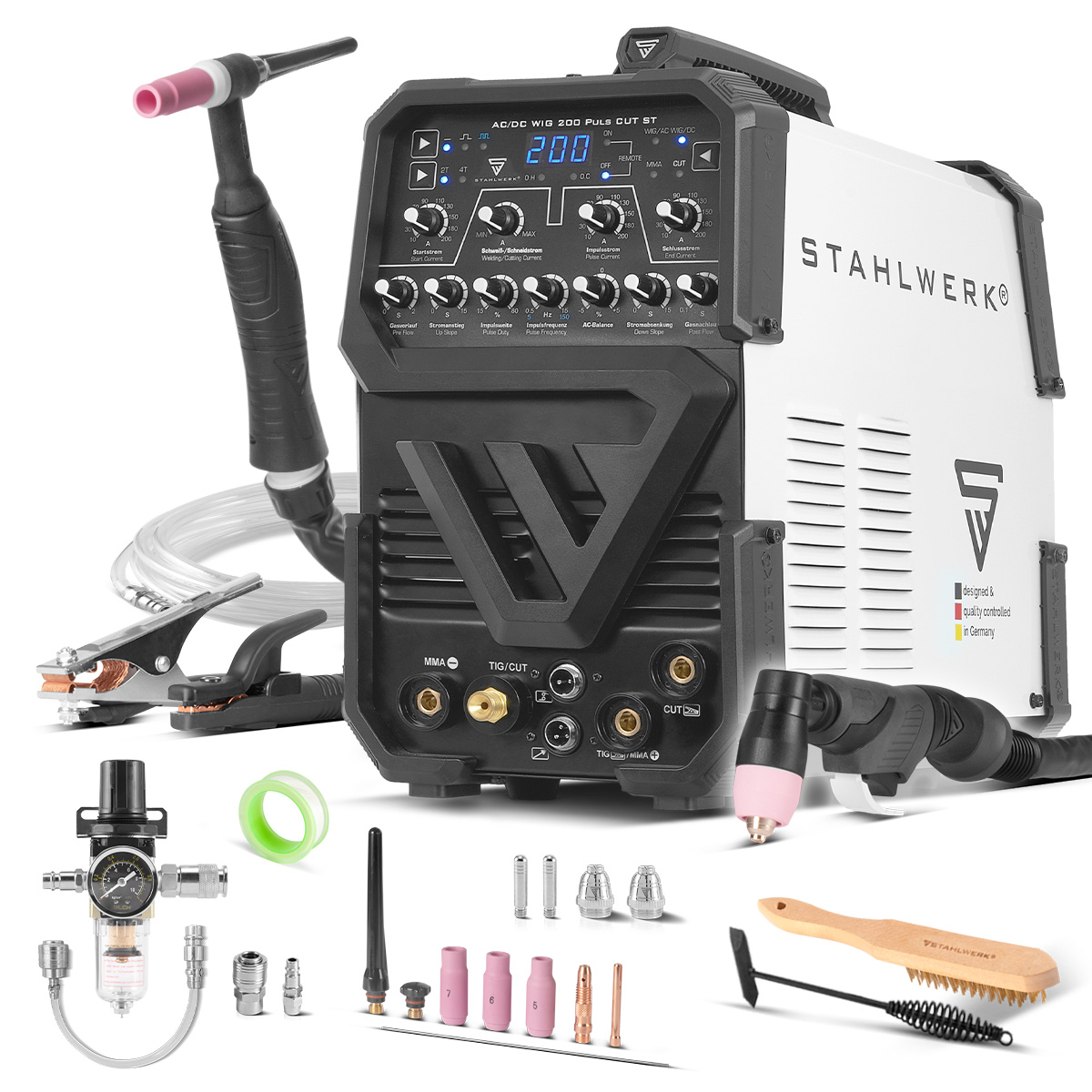

- 1 x STAHLWERK AC/DC TIG 200 pulse with plasma ST
- 1 x Professional TIG welding torch WP-26FR / hose package 3 meters* with flexible torch head and kink protection on the gas connection
- 1 x TIG TIG accessory set 8 pieces:
- 3 x gas nozzles sizes 5, 6, 7
- 1 x clamping sleeve size 1.6
- 1 x clamping sleeve housing size 1.6
- 2 x torch cap - short and long
- 1 x universal tungsten electrode
- 1 x professional plasma hose package AG-60/SG-55 3 meters
- 1 x 3-piece plasma accessory set
- 1 x water separator with pressure gauge and snap-on quick couplings
- 1 x Connecting hose with snap-on quick couplings from the device to the water separator
- 1 x earth cable 3 meters
- 1 x electrode holder 3 meters
- 1 x wire brush
- 1 x Gas connection hose with quick-release coupling 5 meters
- 1 x protective cover
- 1 x Teflon tape
High-quality professional AG-60 plasma hose package with integrated probe protection. Optimal cutting and ignition performance up to 70 A. Thicker hose and more robust wear parts than PT-31.
High-quality professional WP-26 TIG hose package with flexible torch head and bend protection at the gas connection. With adjustment wheel for remote control of the welding current on the handle. An 8-piece wearing parts set for immediate start is included.
Connection of compressed air hoses in seconds thanks to 3/8" snap-on quick coupling on the unit and water separator. One handle is all it takes. Including 5 metre gas connection hose with quick coupling.
